Description
Brand: RECBER

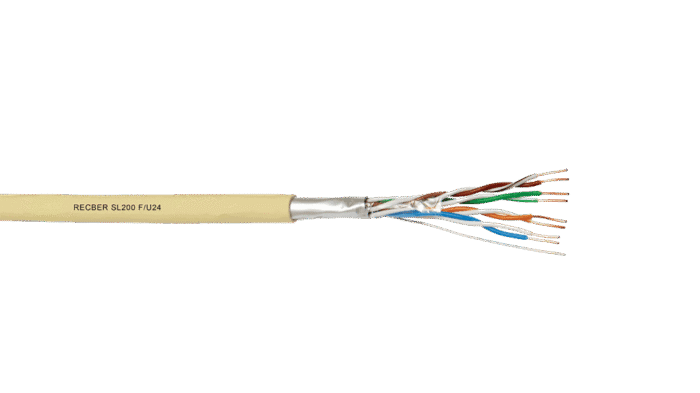

This data cable range is designed for analogue and digital signal transmission in audio, video and data applications in data communication systems supporting 100 MHz, 1.0 Gbit/s 1 Gigabit Ethernet. Cables meet the requirements of structural cabling standards including ANSI EIA/TIA 568, ISO/IEC 11801 and EN 50173 Class D.
Features:
- Electrolytic copper wire: 24AWG
- Pet tape: min. 100% coverage
- Tinned copper drain wire: 26AWG
- Al-Pet tape: min. 100% coverage
- LSZH/LS0H – RAL 1015 Cream, Ø 6.0 mm
- 70°C, EN 50290-2-27
- Temperature range: fixed: -20°C …+60°C; flexing: 0°C …+50°C
- Tensile strength: max: 90N; min: 1000 N/10 cm
- Conductor resistance: max. 95 Ω/km
Standards
- ISO/IEC 11801 2nd ed., IEC 61156-5
- EN 50173-1, EN 50288-2-1
- ANSI EIA/TIA 568-C.2
Fire performance
- Vertical flame propagation: EN 60332-1-2 (LSZH-PVC)
- Corrosive gas: EN 60754-1/2 (LSZH)
- Smoke density: EN 61034-2 (LSZH)
EU declaration of conformity
- LVD: 2014/35/EU
- RoHS: 2011/65/E
Additional information
| ბრენდები | |
|---|---|
| კატეგორია |
CAT6 |
| სპილენძის შემცველობა |
CU (100%) |
| გარსი |
PE |
| კვეთის ზომა |
0.57 |
