Description
Brand: RECBER

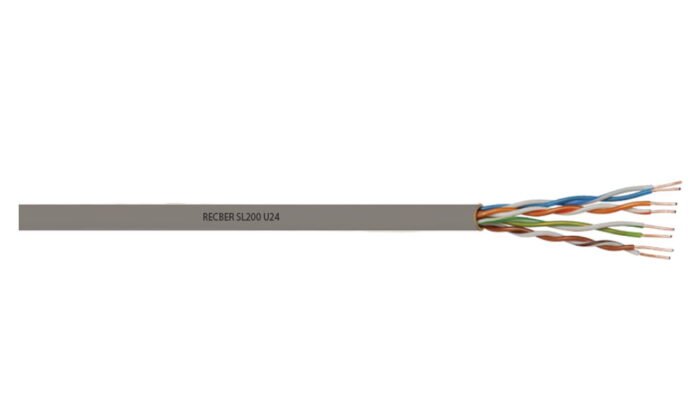

This data cable range is designed for analogue and digital signal transmission in audio, video and data applications in data communication systems supporting 100 MHz, 1.0 Gbit/s 1 Gigabit Ethernet. Cables meet the requirements of structural cabling standards including ANSI EIA/TIA 568, ISO/IEC 11801 and EN 50173 Class D.
Features:
- Electrolytic copper wire: 24AWG
- PVC – RAL 7001 Grey: 5.0 mm
- TM51 70°C, EN 50290-2-22
- Temperature range: fixed: -20°C …+60°C; flexing: 0°C …+50°C
- Tensile strength: max. 85 N
- Crushing strength: min. 1000 N/10 cm
- Conductor resistance: max. 95 Ω/km
Standards
- ISO/IEC 11801 2nd ed., IEC 61156-5
- EN 50173-1, EN 50288-3-1
- ANSI EIA/TIA 568-C.2
- Fire performance: n EN 60332-1-2 (LSZH-PVC)
EU declaration of conformity
- Low Voltage Directive: 2014/35/EU
- Restriction of Hazardous Substances: 2011/65/EU
Additional information
| ბრენდები | |
|---|---|
| კატეგორია |
CAT6 |
| სპილენძის შემცველობა |
CU (100%) |
| გარსი |
PE |
| კვეთის ზომა |
0.57 |
