1U 24 Port FTP Cat5e Patch Panel
140.00₾
1U 24 Port FTP Cat5e Patch Panel
27 in stock
Description
Main features:
Category: Cat5e
Type: FTP
Number of ports: 24
Rated voltage: 125 VAC RMS
Rated current: 1.5 AMP
Contact Impedance: 100 MILLIOHMS MAX
INSULATION IMPEDANCE: 1000 MEGOHMS MIN 500 VDC
Dielectric strength: 750 VAC RMS 60Hz 1MIN
Storage temperature: -40° – 85°
Operating temperature: 0° – 70°
Body: PBT
Shell: stainless steel T=0.2 mm
Panel frame: carbon steel, black 1.5mm

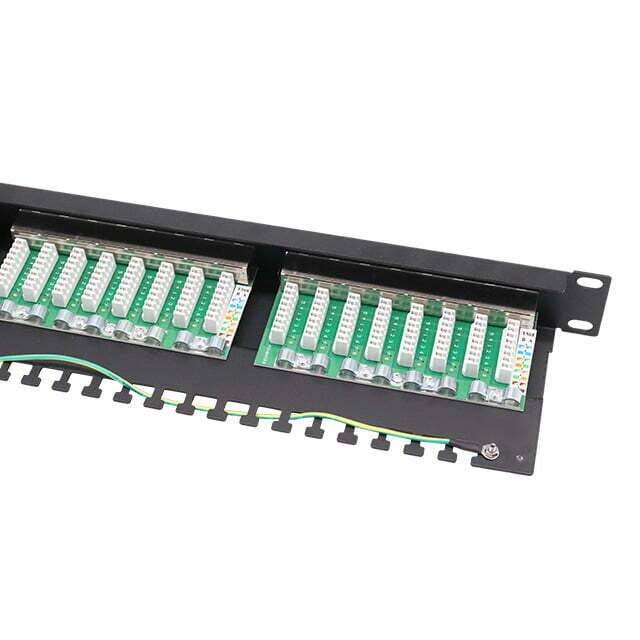

PCB material: FR-4T=1.6mm
IDC Material: PC, Contact: Phosphor/Bronze; Nickel plated
Life cycle of RJ45 jack: 750 min.
IDC life cycle: 200 min.
Additional information
| Weight | 1 kg |
|---|
