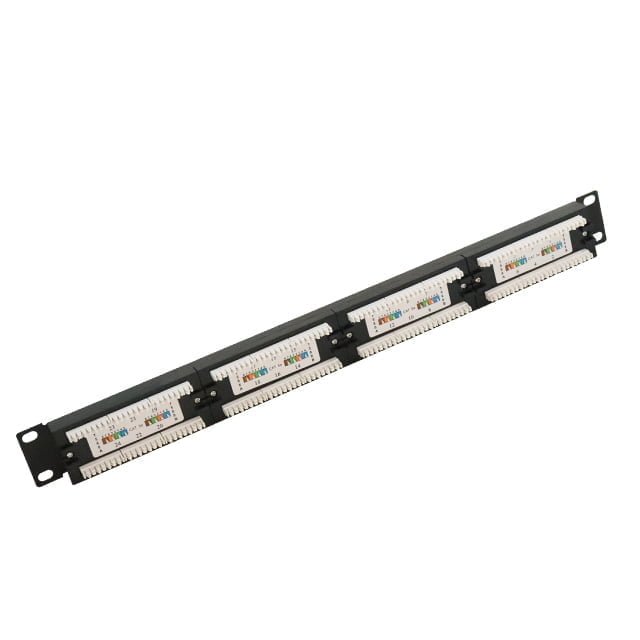

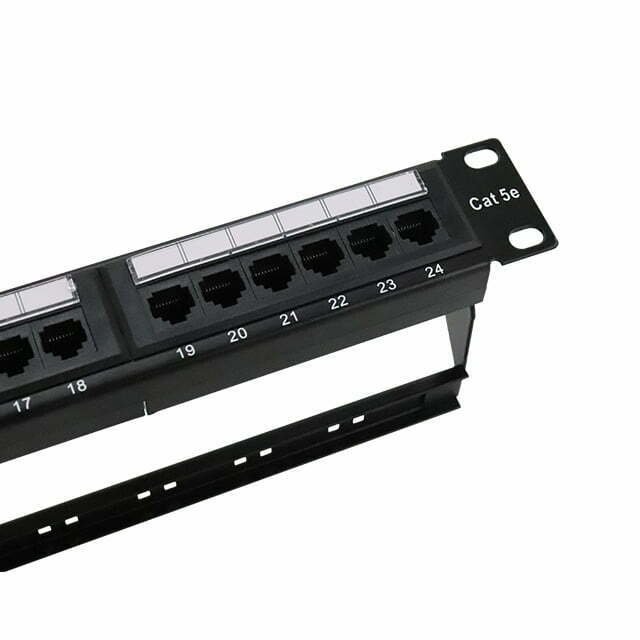

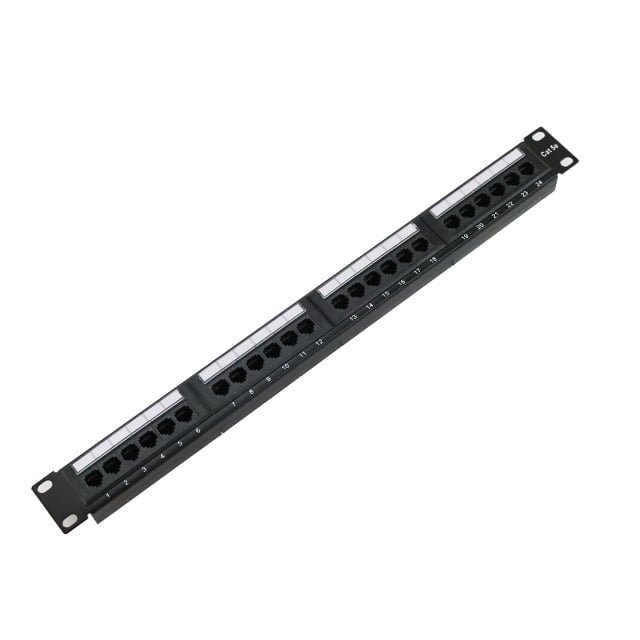

24 Port UTP Cat5e Patch Panel with Back shelf
41.80₾
24 Port UTP Cat5e Patch Panel with Back shelf
49 in stock
Description
24 Port CAT5e UTP PATCH PANEL
COMPLIANCE
ISO/IEC-11801; ANSI/TIA-568-C.2; EN50173-1 ;
ANSI/TIA–1096-A (FCC Part68); IEC 60603-7
DESIGN & MATERIALS:
Number of ports: 24
Category: Cat5e
Panel Type: UTP Punch Down RJ45
Panel Width: 483 mm (19”)
Panel Height: 1U: 44.2 mm
RJ45 Contact Material: Phosphor bronze plated with nickel; surface golden plating
IDC: Tin-plated phosphor bronze
Module Material: High Impact, Flame-Retardant Plastic Compound, Ul 94 V-0
Wiring Standards: EIA/TIA 568 A/B
Color: Black
ELECTRICAL CHARACTERISTICS
Insulation Resistance: 500mΩ minimum
Contact Resistance: 20mΩ max
Dielectric strength: DC 1000V(AC700V)
Working life: 750 times Min for RJ45 jack; 200times min for IDC
